阿超 > android-agent-web中js-bridge案例

android-agent-web中js-bridge案例

2024-04-14

android

我的悲伤还来不及出发，就已经到站下车。——《第七天》

代码仓库：

https://github.com/Justson/AgentWeb

主要代码JsbridgeWebFragment.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
package com.just.agentweb.sample.fragment;

import android.graphics.Bitmap;
import android.os.Build;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.view.ViewGroup;
import android.webkit.WebResourceRequest;
import android.webkit.WebView;
import android.widget.LinearLayout;

import com.github.lzyzsd.jsbridge.BridgeHandler;
import com.github.lzyzsd.jsbridge.BridgeWebView;
import com.github.lzyzsd.jsbridge.BridgeWebViewClient;
import com.github.lzyzsd.jsbridge.CallBackFunction;
import com.google.gson.Gson;
import com.just.agentweb.AgentWeb;
import com.just.agentweb.WebViewClient;

import androidx.annotation.Nullable;

/**
 * Created by cenxiaozhong on 2017/7/1.
 * source code  https://github.com/Justson/AgentWeb
 */

public class JsbridgeWebFragment extends AgentWebFragment {

	public static JsbridgeWebFragment getInstance(Bundle bundle) {

		JsbridgeWebFragment mJsbridgeWebFragment = new JsbridgeWebFragment();
		if (mJsbridgeWebFragment != null) {
			mJsbridgeWebFragment.setArguments(bundle);
		}

		return mJsbridgeWebFragment;
	}

	private BridgeWebView mBridgeWebView;

	@Override
	public String getUrl() {
		return super.getUrl();
	}

	@Override
	public void onViewCreated(View view, @Nullable Bundle savedInstanceState) {

		mBridgeWebView = new BridgeWebView(getActivity());
		mAgentWeb = AgentWeb.with(this)
				.setAgentWebParent((ViewGroup) view, new LinearLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT))
				.useDefaultIndicator(-1, 2)
				.setAgentWebWebSettings(getSettings())
				.setWebChromeClient(mWebChromeClient)
				.setWebViewClient(getWebViewClient())
				.setWebView(mBridgeWebView)
				.setSecurityType(AgentWeb.SecurityType.STRICT_CHECK)
//                .setDownloadListener(mDownloadListener) 4.0.0 删除该API
				.createAgentWeb()//
				.ready()//
				.go(getUrl());


		initView(view);


		mBridgeWebView.registerHandler("submitFromWeb", new BridgeHandler() {

			@Override
			public void handler(String data, CallBackFunction function) {
				function.onCallBack("submitFromWeb exe, response data 中文 from Java");
			}

		});

		User user = new User();
		Location location = new Location();
		location.address = "SDU";
		user.location = location;
		user.name = "Agentweb --> Jsbridge";
		mBridgeWebView.callHandler("functionInJs", new Gson().toJson(user), new CallBackFunction() {
			@Override
			public void onCallBack(String data) {
				Log.i(TAG, "data:" + data);
			}
		});

		mBridgeWebView.send("hello");
	}

	private WebViewClient getWebViewClient() {
		return new WebViewClient() {
			BridgeWebViewClient mBridgeWebViewClient = new BridgeWebViewClient(mBridgeWebView);

			@Override
			public boolean shouldOverrideUrlLoading(WebView view, String url) {
				if (mBridgeWebViewClient.shouldOverrideUrlLoading(view, url)) {
					return true;
				}
				return super.shouldOverrideUrlLoading(view, url);
			}

			@Override
			public boolean shouldOverrideUrlLoading(WebView view, WebResourceRequest request) {
				if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
					if (mBridgeWebViewClient.shouldOverrideUrlLoading(view, request.getUrl().toString())) {
						return true;
					}
				}
				return super.shouldOverrideUrlLoading(view, request);
			}

			@Override
			public void onPageStarted(WebView view, String url, Bitmap favicon) {
				super.onPageStarted(view, url, favicon);
			}

			@Override
			public void onPageFinished(WebView view, String url) {
				super.onPageFinished(view, url);
				mBridgeWebViewClient.onPageFinished(view, url);
			}

		};
	}

	static class Location {
		String address;
	}

	static class User {
		String name;
		Location location;
		String testStr;
	}

}

然后是com/just/agentweb/sample/activity/CommonActivity.java:140代码：

1
2
3
4
5
         /*JsBridge 演示*/
case FLAG_GUIDE_DICTIONARY_JSBRIDGE_SAMPLE:
	ft.add(R.id.container_framelayout, mAgentWebFragment = JsbridgeWebFragment.getInstance(mBundle = new Bundle()), JsbridgeWebFragment.class.getName());
	mBundle.putString(AgentWebFragment.URL_KEY, "file:///android_asset/jsbridge/demo.html");
	break;

还有对应的html

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
<html>
    <head>
        <meta content="text/html; charset=utf-8" http-equiv="content-type">
        <title>
            js调用java
        </title>
    </head>

    <body>

        <p>
            <xmp id="show">
            </xmp>
        </p>

        <p>
            <xmp id="init"></xmp>
        </p>

        <p>
            <input type="text" id="text1" value="用户名(username)" />
        </p>

        <p>
           <input type="text" id="text2" value="password" />
        </p>

        <p>
            <input type="button" id="enter" value="发消息给Native" onclick="testClick();"/>
        </p>

        <p>
          <input type="button" id="enter1" value="调用Native方法" onclick="testClick1();"/>
        </p>

        <p>
            <input type="button" id="enter2" value="显示html" onclick="testDiv();" />
        </p>

        <p>
            <input type="file" value="打开文件" />
        </p>

    </body>
    <script>

        function testDiv() {
            document.getElementById("show").innerHTML = document.getElementsByTagName("html")[0].innerHTML;
        }

        function testClick() {
            var str1 = document.getElementById("text1").value;
            var str2 = document.getElementById("text2").value;

            //send message to native
            var data = {id: 1, content: "这是一个图片 <img src=\"a.png\"/> test\r\nhahaha"};
            window.WebViewJavascriptBridge.send(
                data
                , function(responseData) {
                    document.getElementById("show").innerHTML = "repsonseData from java, data = " + responseData
                }
            );

        }

        function testClick1() {
            var str1 = document.getElementById("text1").value;
            var str2 = document.getElementById("text2").value;

            //call native method
            window.WebViewJavascriptBridge.callHandler(
                'submitFromWeb'
                , {'param': '中文测试'}
                , function(responseData) {
                    document.getElementById("show").innerHTML = "send get responseData from java, data = " + responseData
                }
            );
        }

        function bridgeLog(logContent) {
            document.getElementById("show").innerHTML = logContent;
        }

        function connectWebViewJavascriptBridge(callback) {
            if (window.WebViewJavascriptBridge) {
                callback(WebViewJavascriptBridge)
            } else {
                document.addEventListener(
                    'WebViewJavascriptBridgeReady'
                    , function() {
                        callback(WebViewJavascriptBridge)
                    },
                    false
                );
            }
        }

        connectWebViewJavascriptBridge(function(bridge) {
            bridge.init(function(message, responseCallback) {
                console.log('Js got a message', message);
                var data = {
                    'Javascript Responds': '测试中文!'
                };
                console.log('Js responding with', data);
                responseCallback(data);
            });

            bridge.registerHandler("functionInJs", function(data, responseCallback) {
                document.getElementById("show").innerHTML = ("data from Java: = " + data);
                var responseData = "Javascript Says Right back aka!";
                responseCallback(responseData);
            });
        })
    </script>

</html>

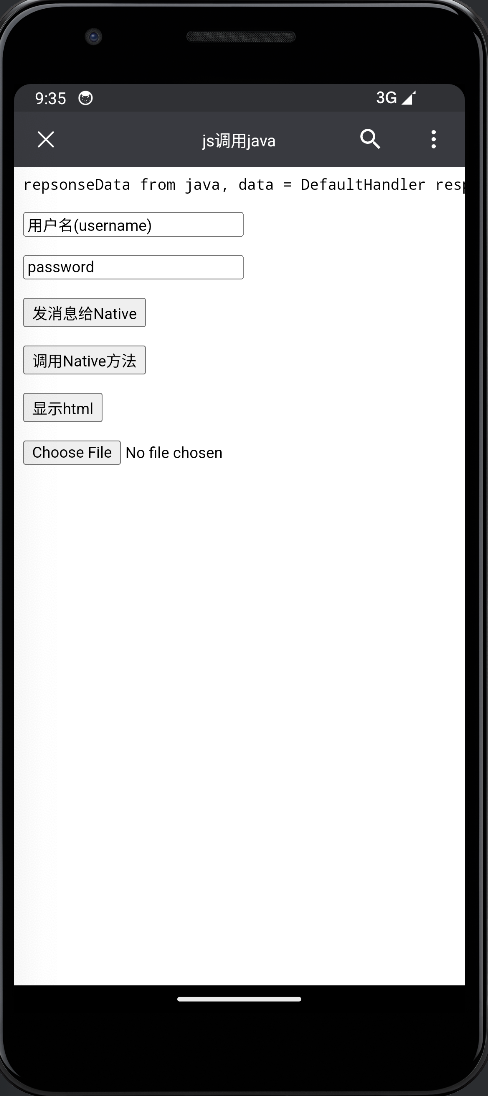

效果如下：
